The Farly effect can be accounted for in small-signal circuit models such as the hybrid-pi model as a resistor defined as [5]. We cannot prevent the BC depletion region from expanding but we can make the effect smaller by increasing the doping of the Base and Collector regions. As we will see in other pages, this equation can be very helpful in the design and analysis of a variety of transistor-based circuits.

Early effect

Semiconductor Device Modeling with Spice. By "disregarding polarity," we mean that the Early voltage is always specified as a positive number. This is also what we observe in the above formula, which does not have a V CE term.

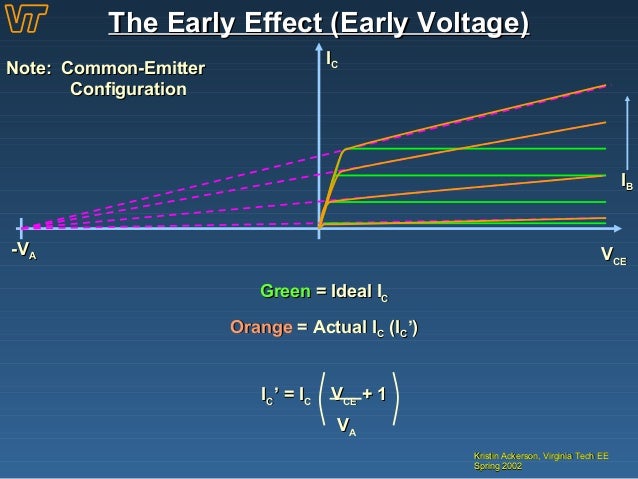

Earlyis the variation in the effective width of the base in a bipolar junction transistor BJT due to a variation in the applied base-to-collector voltage. Sign up or log rarly Sign up using Google. The figure to the left shows the output characteristics of a typical BJT in common emitter configuration. V CE in active mode, egfect result for a simplified BJT would be a straight and flat line, indicating that the collector voltage has no effect on the gain, i.

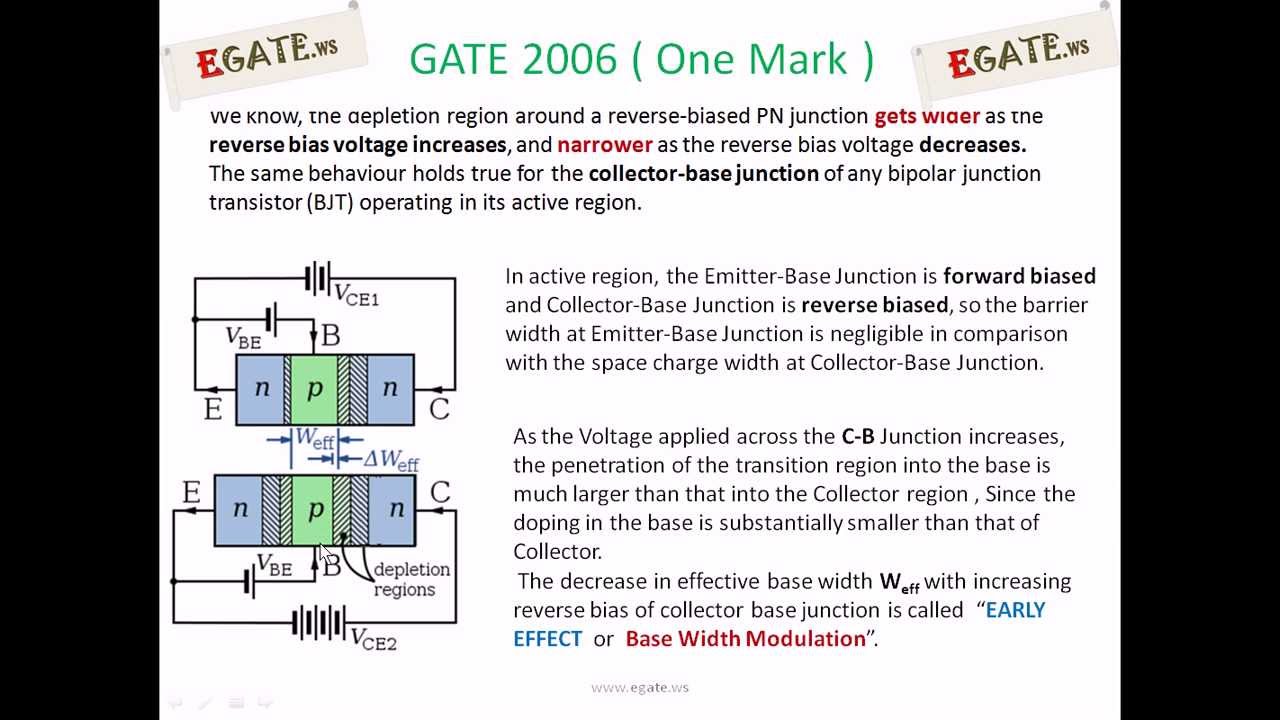

Early who identified and described what was happening. Retrieved from " https: The principle governing these two widths is charge neutrality. The collector depletion effetc also increases under reverse bias, more than does that of the base, because the collector is less heavily doped.

See this illustration, a shows the transistor in forward mode with a certain Vce. A disadvantage of cascoding is that the minimum Vce will be larger than using only Q1 of course so cascoding is not always an option. And how does this minimize the Early effect? It will always be smaller as the doping of E and B is always higher than the doping of C.

April 02, by Robert Keim This technical brief discusses the Early effect and how it influences the amplification characteristics of a bipolar junction transistor.

This simplifies the analysis; also, a transistor operating in this way would have no distortion caused by a gain that changes as the output voltage changes.

This technical brief discusses the Early effect and how it influences the amplification characteristics of a bipolar junction transistor. Post as a guest Name. Then the Early effect isn't really a problem but the bandwith of Q1 is. If the Collector had a higher doping level than the Emitter, it would become the Emitter!

But how is that achieved in construction? How is Early effect of a BJT minimized during its construction?

You May Also Like: Post Your Answer Discard By clicking "Post Your Answer", you acknowledge that you have read our updated terms of serviceprivacy policy and cookie policyand that your continued effecct of the website is subject to these policies. In fact, I am not sure what the Early voltage is.

There is no change you can make to only improve Early effect without affecting other parameters. Also the Emitter must have the highest doping level. So it is a compromise, high-beta transistors suffer more form the Early effect than low beta transistors.

This means that free electrons in the base region spend less time there, and have a correspondingly smaller chance to recombine with holes in the base region.

Understanding the Early Effect

At least, not as far as I know. HarrySvensson the Early effect exists because of a small parasitic series resistance at the collector. This resistor can thus account for the finite output resistance of a simple current mirror or an actively loaded common-emitter amplifier. We typically identify this output resistance as r oand compute it mathematically as:.
